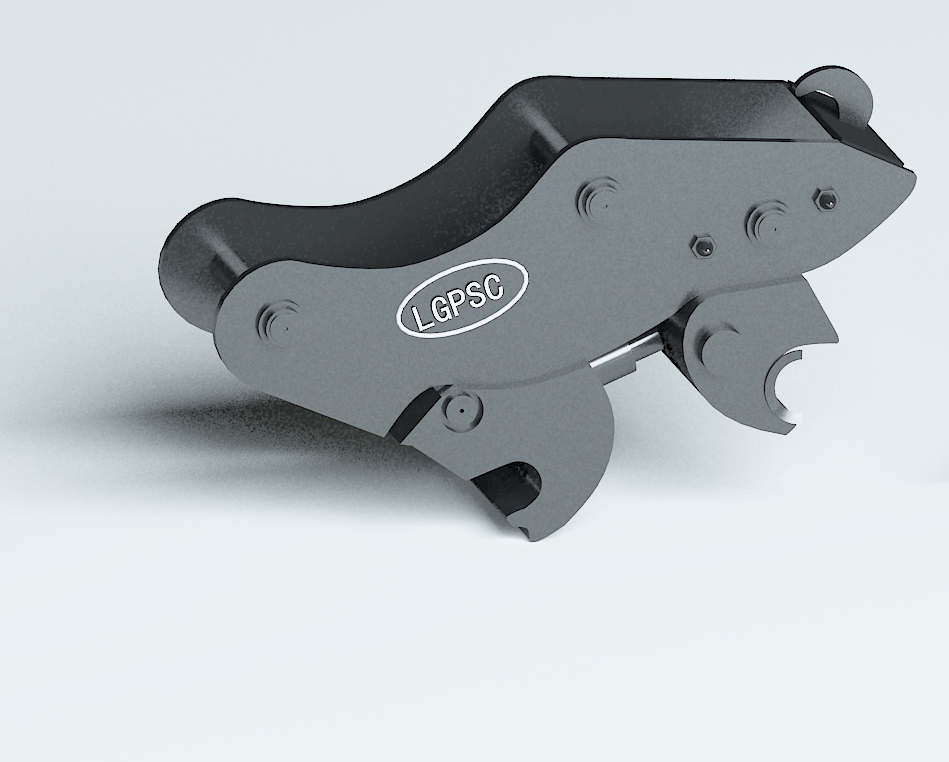

The mechanical quick connector developed and produced by Ligu machinery company is suitable for 1-15 ton excavators. It adopts thickened wear-resistant steel plate, which makes the telescopic tiger mouth more wear-resistant and ensures reliable quality; The overall structure design is reasonable, the installation is very convenient and fast, and various accessories can be easily replaced in use, saving a lot of time; The designed safety pin is more accurate, firm and safe.
Category LGB01 LGB02 LGB04 LGB06
Total length 300-450 534-545 600 765
Total width 150-250 258-263 270-280 353-436
Total height 225-270 307 310 388
Boom opening 82-180 155-170 180-200 232-315
Axle center distance
95-220 230-270 290-360 380-420
Shaft diameter 20-45 40-45 45-55 50-70
Cylinder telescopic distance
95-200 205-275 340-450 340-486
Upper and lower shaft spacing
170-190 195 195 220
Weight 30-40 50-60 80-90 120-130
The design structure is reasonable and very convenient for customers.
